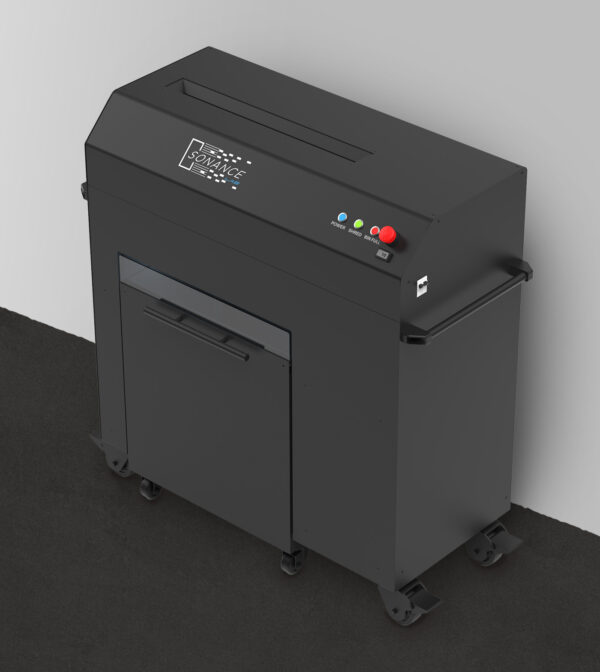

SONANCE LAB CBC-1
Product Info
The SONANCE LAB CBC-1 delivers military-grade cardboard shredding capabilities in a simple yet sophisticated, user-friendly package designed for the modern enterprise.
Additional information
| Height | 44.5” |
|---|---|
| Width w/ Handles | 49.5” |
| Width w/o Handles | 43.5” |
| Machine Weight | 995lbs |
| Shipping Weight | 1180lbs (with crate) |
| Wheel Configuration | Locking Heavy-Duty Castors for Machine and Bin |
| Hinged Top | Allows Easy Servicing of Grinder Mechanism |
| Power Requirement | 220v 30A |
| Plug Required | L6-30 Locking Receptacle |
| Breaker | 2x 20A User Accessible Safety Breaker |
| Duty Cycle | 8 Hours. 30-minute cool down after 8 hours of operation. |
| Safety Features | ETL/UL Safety Compliance |
| Bin Size | 29”H x 23.5” W x 19.25” D (Including Handle) |
| Bin Capacity | 7318.5 cubic inches or 4.25 cubic feet |
| Average Box Capacity | Approximately 40 average single-ply boxes |
| Average bag weight | Approximately 20-22 pounds |
| Shredder Bag | 76” perimeter, standard 45/55-gallon bags |
| Bin Full Sensing | Automatic Motor Stop and Bin Full Indicator Light when Filled |
| Feed Chute | 24” W x .75” D (Approximately 4 plies of average cardboard) |
| Bin Monitoring | Acrylic window with LED lighting provides visual feedback on fill level |
| Feed Rate | .45 seconds/inch, 5.5 seconds/foot |
| Auto-Reverse | 2 seconds- Triggered automatically if grinder is overloaded. |
